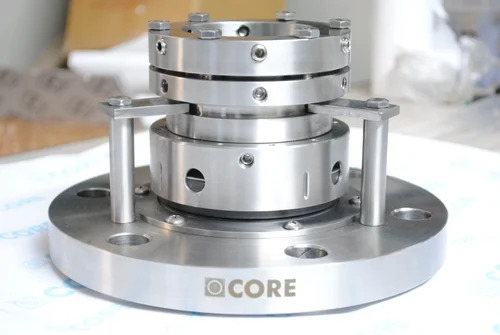

Name: SS Agitator Seals
Brand: CORE ENGINEERS
Price: 45000 INR
Availability: InStock

Product Details:

Theory Rotary dynamic sealing
Hardness High surface hardness
Application Industrial
Style Mechanical Seal
Material SS
Temperature -20 DegreeC to +1.90 DegreeC
Pressure Vacuum to 6 bar
Share Your Product:

45000 INR/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

SS Agitator Seals Price And Quantity

Price 45000 INR/Piece
Minimum Order Quantity 50 Piece

SS Agitator Seals Product Specifications

Function Seal agitator shafts
Application Industrial
Material SS
Hardness High surface hardness
Theory Rotary dynamic sealing
Structure Single cartridge
Size 40 to 200 mm
Temperature -20 DegreeC to +1.90 DegreeC
Pressure Vacuum to 6 bar
Speed up to 2 m/s
Style Mechanical Seal

Leakage Control Zero visible leakage
Operational Safety Explosion proof available
Mounting Top/Side entry
Color Silver
O-ring Material PTFE option
Seal Type Agitator seal
Shaft Diameter Customizable

SS Agitator Seals Trade Information

Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India

Product Description

A Dry Running Agitator Seal is a specialized mechanical seal designed for applications where the seal may need to operate without the presence of a liquid or lubrication. This is particularly important in scenarios where the shaft of an agitator (or mixer) may rotate in dry conditions, and traditional seals that rely on fluid lubrication would fail due to friction, overheating, or wear.

Key Features:

Dry Running Capability: These seals are built to handle situations where there is little to no liquid present to cool or lubricate the seal faces.
Low Friction Materials: The seal faces are often made from special materials like carbon, graphite, or silicon carbide, which are highly resistant to heat and friction.
Cooling Systems (optional): Some dry running seals are equipped with cooling systems (such as air-cooled or water-cooled jackets) to dissipate the heat generated during operation.
Minimal Wear: The use of advanced materials minimizes wear even during dry conditions, extending the life of the seal.
No Contamination: In some industries, it is essential to avoid contamination from lubricating liquids or external cooling agents, making dry running seals ideal.

Robust, High-Performance Sealing Solution

These agitator seals are constructed with high-surface-hardness stainless steel to deliver uncompromising durability under demanding industrial conditions. Their advanced design minimizes maintenance and ensures zero visible leakage, resulting in safer and more efficient operation of mixing and processing equipment.

Customizable and Versatile Applications

Available for both top and side mounting, the seals accommodate a wide array of shaft diameters, matching various industrial requirements. The explosion-proof configuration and PTFE O-ring option allow the product to be tailored for hazardous environments or processes involving aggressive chemicals.

Simple Installation and Reliable Operation

The single cartridge design streamlines installation and replacement processes, reducing downtime and supporting reliable day-to-day usage. Their capability to operate under both vacuum and moderate pressure-paired with temperature resistance-ensures adaptability across a diverse range of industrial settings.

FAQ's of SS Agitator Seals:

Q: How do SS Agitator Seals ensure zero visible leakage during operation?

A: SS Agitator Seals use advanced rotary dynamic sealing technology combined with high-grade materials and precision construction to form a tight, secure seal around the agitator shaft. This prevents visible leakage even under vacuum or pressure conditions up to 6 bar.

Q: What makes these agitator seals suitable for industrial use in hazardous environments?

A: They are constructed from stainless steel for high durability and feature an explosion-proof option for added operational safety. The PTFE O-ring option provides excellent chemical resistance, making them ideal for challenging industrial settings.

Q: When should I consider using SS Agitator Seals with PTFE O-rings?

A: PTFE O-rings are recommended when your process involves aggressive chemicals or requires enhanced corrosion resistance. They are particularly suitable for applications in chemical or pharmaceutical industries where standard elastomers may not perform reliably.

Q: Where can these agitator seals be installed in mixing equipment?

A: The agitator seals are designed for both top and side entry installation, making them versatile for various agitator shaft configurations in industrial mixing and processing equipment.

Q: What is the installation and replacement process for this single cartridge mechanical seal?

A: The single cartridge design simplifies both installation and replacement. The entire assembly can be mounted or removed as one piece, significantly reducing machine downtime and maintenance complexity compared to multi-component seal systems.

Q: How do SS Agitator Seals benefit industrial operations?

A: By ensuring zero visible leakage, providing high durability, supporting customizable fit, and offering explosion-proof safety, these seals minimize maintenance costs, protect process integrity, and enhance workplace safety.
